4K To 8K Curved Screen Cinema 4D Virtual Reality With CE Rhos Certification

Detail Information

Place of Origin:

GUANGZHOU CHINA

Certification:

CE Rohs

Packaging Details:

WOODEN BOX

Highlight:

Product Description

4K To 8K Curved Screen Cinema 4D Virtual Reality System With CE RHOS Certification

Display System Specifications

Parameter	Technical Specifications	Notes
Curved Screen	Standard: 3.5m(H) × 5.5m(W)	Maximum height support: 5.8m
Resolution	4K to 8K (Standard: 4096 × 2160; High-end: 8192 × 8192)	Requires high lumen projection equipment
Brightness	≥ 6800 ANSI lumens (projector)	Screen brightness ≥ 300 nits
Projection Technology	- Dual screen fusion technology (12 laser projectors) - Edge fusion + geometric correction	Eliminates visual discontinuity in splicing (3-4 projectors)
Vertical Perspective Coverage	≥ 150 degrees	Creates panoramic immersion effect

Sound System Specifications

Parameter	Technical Specifications
Channel Configuration	2.0 channel surround sound system
Sound Effects Characteristics	Ultra low frequency channel + spatial equalization technology
Sound Field Coverage	Uniform sound pressure level (≤ 3dB difference across area)

Special Functional Features

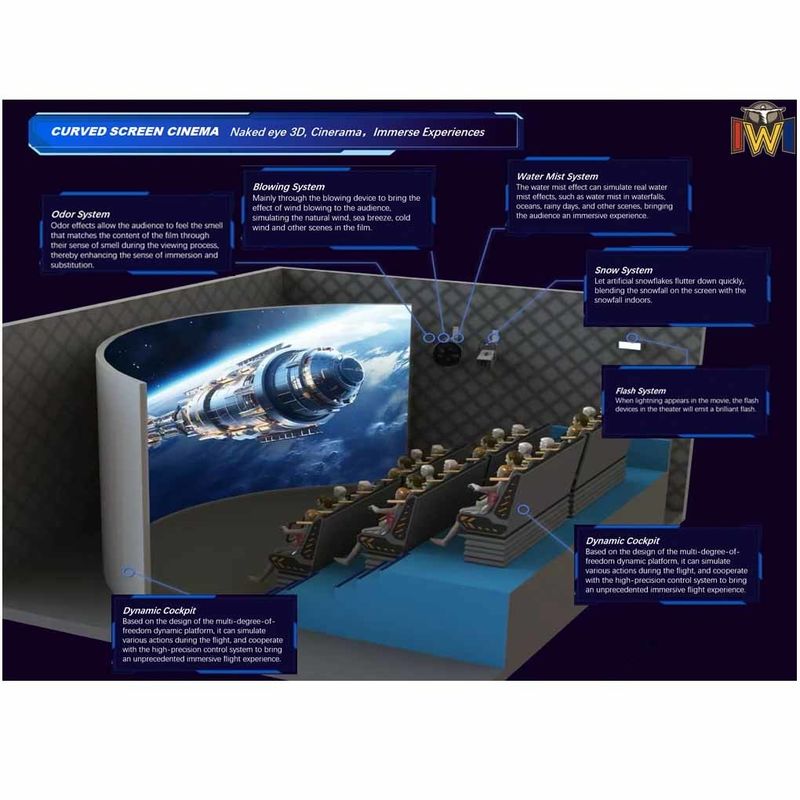

4D Environmental Simulation: Integrated wind speed, temperature, water spray, and vibration devices
Dynamic Platform: Six degree of freedom dynamic seat (pitch 45°+)
Viewing Capacity: 10-20 players per game (standard curved screen)

Structural Configuration

Type	Material	Application Scenarios
Hard Curved Screen	Resin composite materials	Theme parks, shopping/entertainment centers, science museums, observatories

Key Technologies

Calibration System: Pixel level stitching calibration algorithm
Content Generation: Real-time celestial motion rendering (orbit accuracy 1:10000)
Modular Design: Supports quick assembly

Additional Information

Dimensions: 6m(W) × 6m(L) × 5m(H)

Return on Investment: 3-6 months

Sales Support: Full online sales support

Applications: Arcade centers, PlayStation corners, play zones, amusement centers, science museums
